10 years focus on LED outdoor lighting power supply R & D and production
7 Years
| Ask Lasest Price | |
| Brand Name : | Turefull |
| Model Number : | ZF-HBG-100F130 |
| Certification : | SAA,CE |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union |
| Supply Ability : | 10000pcs per month |
| Delivery Time : | 7-10 days |
150w led high bay light driver waterproof non isolated 1800ma IP67
Features:
1. Wide input range 90-277VAC with active PFC function
2. Efficiency can be 93%
3. non-isolated type
4. IP67 rated constant power supply
5. 3 years warranty
Tehnical parameter
| Model | ZF-HBG-150F130 | ZF-HBG-150F200 | |
| output voltage | 90-130VDC | 220-300VDC |
| Output current(Typ) | 1.0-1.5A | 0.5-0.68A | |
| Output power(MAX) | 150W | 150W | |
| Ripple and Noise Re.2 | 50mA Max | 30mA Max | |
| Efficiency(Typ) | ≥94% | ≥94% | |
| Current error(MAX) | ±3% | ±3% | |
| Line regulation | ±0.5% | ±0.5% | |
| Load regulation | ±0.5% | ±0.5% | |
| Start time Re.3 | 1s Max.@220Vac input&full load,2S Max.@100Vac input&full load | ||
| output current rise time | 300mS Max.@full load | ||
Input | Input voltage range | 90-277Vac | |
| Frequency range | 47-63HZ | ||
| Power factor(Typ) | PF≥0.97 at 100Vac&full load,PF>0.97 at 230Vac&full load | ||
| AC current(Typ) | 1.5A Max@100-277Vac&full load | ||
| Surge current(Typ) | 277Vac input,Max 100A | ||
Protection | Short-circuit | Protect mode:Hi-cup,It can be recovered by itself after short-circuit removal | |
| Environmet | Operating Temp. | -40---+60℃ | |
| Operating Humidity | 0-95%RH | ||
| Storage temperature, humidity | -40-+80℃,0-95%RH | ||
| IP grade | IP65/IP67 | ||
| vibration resistance | 10-500HZ,5G 12 Min/Cycle,72 minutes each for the XMY Z axis | ||
| Safety and EMC | Safety specification note 5 | EN 61347-1:2008+A1:2011+A2:2013 , EN 61347-2-13:2006 , EN 62493:2010 | |
| EMI | EN55015 (CISPR15),EN61000-3-2 ;EN610003-3,GB17743,GB17625.1 | ||
| EMC | EN61547;EN55042,EN61000-4-2,3,4,5,6,8,11,GB/T18596,GB17626 | ||
| Lightning surge | L/N-G | L/N-FG,±6KV | |
| L-N | L-N,±4KV | ||
| Cables | rubber covered wire | Input line 3*1² | |
| rubber covered wire | Output line 2*1² | ||
| case | Full aluminum case | Silica gel filling | |
Others | MTBF | ≥150Khrs MIL-HDBK-217F(25℃) | |
| Main body size | D151.68*H66.5mm | ||
| weight | |||

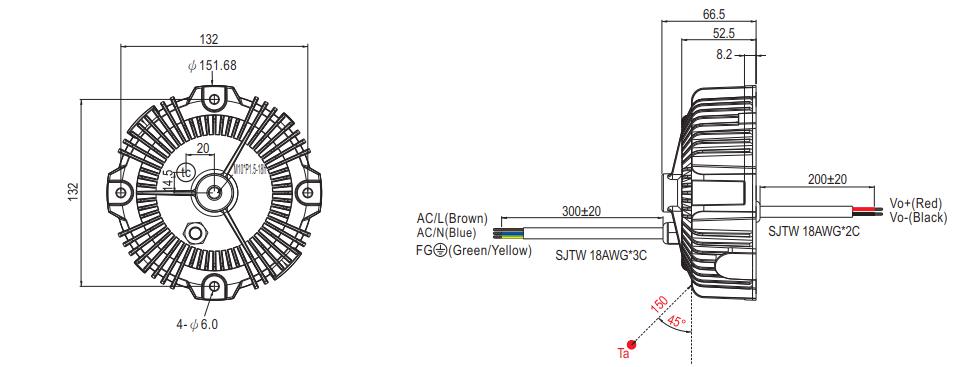

Dimension Size
FAQ
1. Are you trading company or manufacturer ?
A: We are manufacturer.
2. Do you have your own R&D team?
A: Yes, we can customize products as your requirements.
3.Do you provide free samples ?
A: Yes, We can send free sampls if you can be responsible for
freight cost.
4.How about the quality?
A: We have the best professional engineer and strict QA and QC
system.
We have CE, UL, ROHS, ISO9001 certificate.
5. Can we be your distributor?
A: We are looking for distributor and agent all over the world.
6. How’s the package?
A: Normally are cartons, but also we can pack it according to your
requirements.
7. What’s the payment term?
A: We accept T/T, Paypal.
9. How’s the delivery time?
A: It depends on the quantity you need, 1-15 days usually.
10. Where is your shipping port?
A: Normally shenzhen.
|
|
