10 years focus on LED outdoor lighting power supply R & D and production
7 Years
| Ask Lasest Price | |
| Brand Name : | Turefull |
| Model Number : | ZF-HLB-180W-XL |
| Certification : | CE/ROHS/FCC/TUV/SAA |
| Supply Ability : | 10000 Piece/Pieces per Month |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Delivery Time : | 5-10 work days |
Features
1. Adopt original imported IC,capacitor,Mos,conform to universal standards,Stable quality and stable performance.
2. Current Accuracy 3%,low Dc ripple ,high inversion frequency,low
temperature,long lifespan
3. Wide input voltage 90-277V,100% load aging and full functional
testing
4. high PFC>0.95,high efficiency>0.88
5. Power outdoor high power LED lighting
6. Full aluminum case,IP67 waterproof
7. 5 years warranty

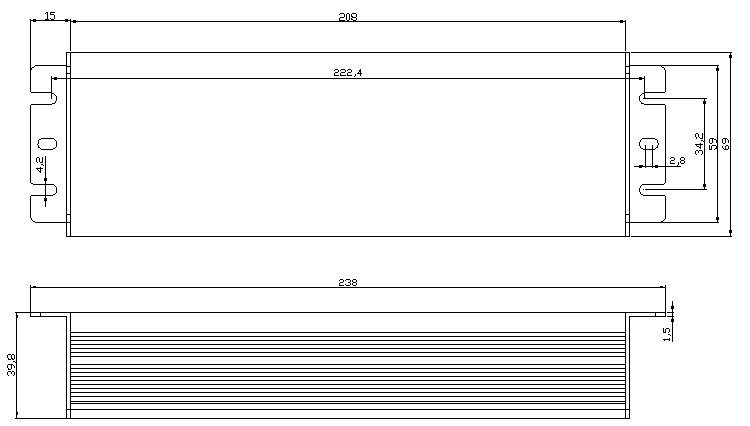

Product Dimensions
Specification
| Model No. | ZF-HLB-180-36 | ZF-HLB-180-42 | ZF-HLB-180-48 | ZF-HLB-180-54 | ZF-HLB-180-60 | ZF-HLB-180-65 | ZF-HLB-180-72 | |
| output | No-load voltage(MAX) | 37VDC | 43VDC | 49VDC | 55VDC | 59VDC | 66VDC | 73VDC |
| output current(Typ) | 5A | 4.28A | 3.75A | 3.3A | 3.15A | 2.77A | 2.5A | |
| output power(MAX) | 183W | 183W | 183W | 183W | 183W | 183W | 183W | |
| Ripple and Noise | 300mV | 300mV | 300mV | 300mV | 300mV | 300mV | 300mV | |
| Output voltage range | 25-36VDC | 25-42VDC | 25-48VDC | 38-54VDC | 38-58VDC | 38-72VDC | 38-72VDC | |
| Efficiency(Typ) | ≥91% | ≥92% | ≥92% | ≥92% | ≥93% | ≥93% | ≥93% | |
| Current error(MAX) | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | |
| Line regulatiom | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | |
| Load regulation | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | |
| Start time | ≤200ms,≤500ms(full load)230VAC/115AC | |||||||
| Hold time(Typ) | 10ms full load 230VAC/115VAC | |||||||
| input | Input voltage | 100-300VAC or130-430VDC(When AC input voltage is higher than 277V AC,APFC closed,the led driver enter in no PFC working solution.) | ||||||
| Frequency | 47-63HZ | |||||||
| PFC(Typ) | PF≥0.97 230VAC full load | |||||||
| THD(Typ) | ＜20%(According to the standard of loading lighting) | |||||||
| AC current(Typ) | ＜2.7A/115VAC, ＜1.5A/230VAC, ＜1.2A/277VAC | |||||||
| Surge current(Typ) | cold start<80A /230VAC | |||||||
| Leakage current | ＜0.75MA/300VAC | |||||||
FAQ:
1.Q: What is your MOQ?
A: The MOQ can be 1 piece,when we have goods in our warehouse.
2.Q: What's your delivery lead-time?
A: 1-7 days or more,depending on your order requirements.
3.Q: Do you accept OEM orders?
A: Yes,sure.
4.Q: Can we be your distributor?
A: Yes,we welcome you to be one of our distributors or regional agents in your country.
|
|
