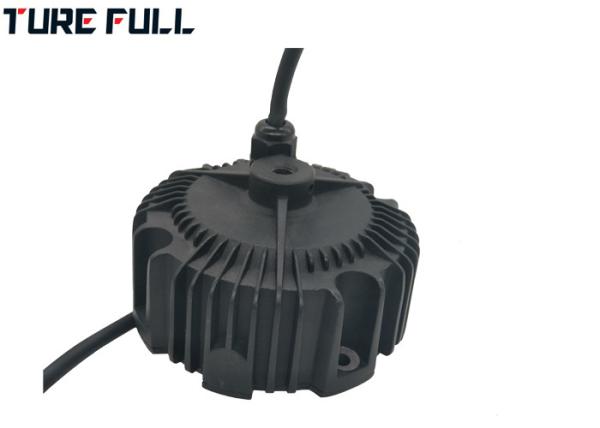

100W High Quality UFO Hbg Grow Light Power Supply LED Driver
Features
1.UFO LED driver in constant current type
2.protection design:Short-circuit protection,over-voltage protection,over-current protection,over-temperature protection.
3.high PFC>0.98,high efficiency>88%
4.Function:Current adjustable,1-10V dimmable led driver
5.IP grade:IP67 waterproof
6.Application:UFO led light,street lighting,tunnel lighting
Technical parameter
| Part Number | HBG-100-36 | HBG-100-48 | HBG-100-60 | HBG-100-72 | ||||||
| OUTPUT | DC VOLTAGE | 27~36Vdc | 36~48Vdc | 48~60Vdc | 60~72Vdc | |||||
| CONSTANT CURRENT REGION Note.4 | 2.7A | 2.1A | 1.6A | 1.38A | ||||||
| RATED POWER | 100W | |||||||||
| RIPPLE & NOISE(max.) Note.2 | 2000mA Max | 1500mA Max | 1200mA Max | 1000mA Max | ||||||
| CURRENT TOLERANCE Note.3 | ±3.0% | |||||||||
| LINE REGULATION | ±3.0% | |||||||||
| LOAD REGULATION | ±3.0% | |||||||||
| SETUP, RISE TIME(Typ.) Note.7 | 300ms 230VAC at full load | |||||||||
| INPUT | VOLTAGE RANGE Note.5 | 90 ~277VAC | ||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||||
| POWER FACTOR(Typ.) | >0.98 at 100Vac&full load; >0.95 at 230Vac&full load | |||||||||
| EFFICIENCY(Typ.) | 88% | 89% | 90% | 91% | ||||||
| AC CURRENT(Typ.) | 0.58A/115VAC 0.29A/230VAC | |||||||||
| INRUSH CURRENT(Typ.) | COLD START 40A ( Twidth=270us measured at 50% Ipeak ) at 230VAC | |||||||||
| LEAKAGE CURRENT | <0.75mA/265VAC | |||||||||
| OTHERS | MTBF | 200khrs min. MIL-HDBK-217F (25℃) | ||||||||
| DIMENSIION | 110*64MM(L*W*H) | |||||||||
| PACKING | 380±10g | |||||||||
Dimensions
|
|
