    100% Waterproof Electronic LED Driver , 36w Led Driver For Solar Power Plant

    Ask Lasest Price
    Brand Name : Turefull
    Model Number : ZF-HLB-50W-XL-2a14
    Certification : CE/ROHS/FCC/TUV/SAA
    Supply Ability : 10000 Piece/Pieces per Month
    Price : Negotiable
    • Product Details
    • Company Profile

    100% Waterproof Electronic LED Driver , 36w Led Driver For Solar Power Plant

    High Quality 100% Waterproof 36w led driver for solar power plant
    Features

    1. Use Best quality components such as Rubycon,NCC capacitor,Infineon IC,Toshiba Mos.

    2. high PFC>0.95,high efficiency >0.88

    3. protection design:OVP/OCP/OTP/SCP

    4. 100% loading testing about 24 hours

    5. IP67 grade

    6. 5 years warranty

    7. Can be dimmable(Three-in-one online dimmable)


    Parameters


    Model No.

    ZF-HLB-50-36

    ZF-HLB-50-36

    ZF-HLB-50-36

    ZF-HLB-50-36

    DC output27-36V36-48V48-60V60-72V
    current1.8-1.4A1.4-1.0A1.0-0.8A0.8-0.7A
    power50W50W50W50W
    Ripple current300mA MAX200mA MAX200mA MAX100mA MAX
    Current Accuracy+/-3%+/-3%+/-3%+/-3%
    input voltage90-277V90-277V90-277V90-277V
    frequency47-63HZ
    PFCPF>0.99 at 100Vac&full load;PF>0.97 at 230Vac&full load
    Efficiency88%89%90%91%
    input Current0.8A MAX @100-277V ac & full load
    inrush current277V ac,MAX 40A
    DC over-voltage protection>42V>56V>68V>80V
    over-Temp.protectionwhen Tc reach to 90 degree +/-5 degree.output current will be decrease to protect power supply,when the temperature lower,the product recover output
    working temperature-40 degree--60degree
    working humdity0-95%RH
    waterproof gradeIP65/IP67
    MTBFmore than 200K hours@25 degree
    CertificateCE,ROHS,TUV,FCC,SAA
    Size130*44*32mm

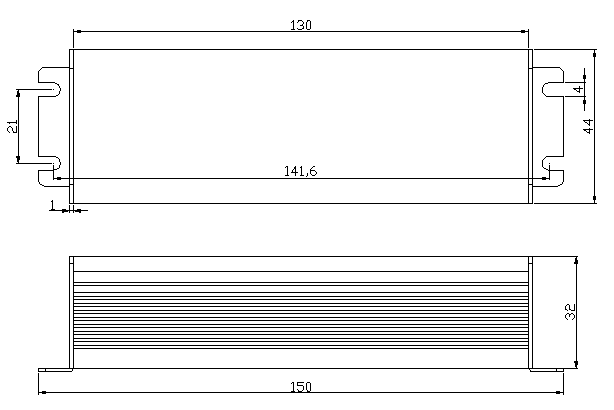

    Dimension and inner picture

    100% Waterproof Electronic LED Driver , 36w Led Driver For Solar Power Plant

    100% Waterproof Electronic LED Driver , 36w Led Driver For Solar Power Plant

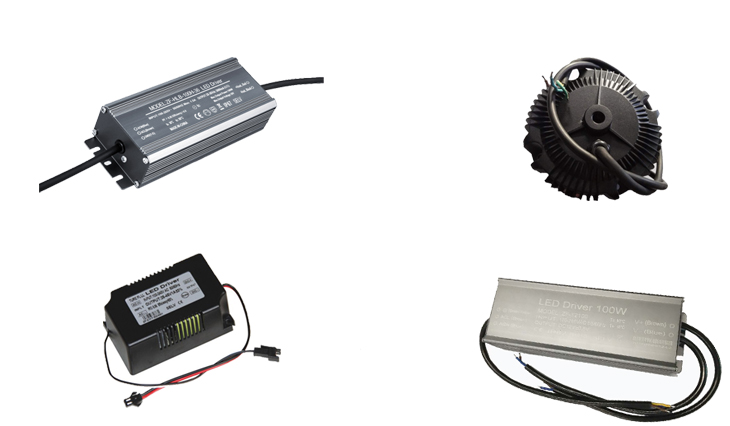

    Product Category

    PRODUCT CATEGORIES

    → VIEW ALL
    100% Waterproof Electronic LED Driver , 36w Led Driver For Solar Power Plant
    LED street lighting driver(10-400W)
    UFO LED high bay light driver(60-240W)
    LED grow lighting driver
    constant voltage led driver(10-300W)
    Company Information
    100% Waterproof Electronic LED Driver , 36w Led Driver For Solar Power Plant

    ABOUT US

    SHENZHEN ZHONGFU OPTOELECTRONICS TECHNOLOGY CO.,LTD located in Shenzhen China since 2009.is a High-tech enterprise which is engaged in R&D,manufacturing and selling all kinds of led Lighting driver.We mainly focus on constant current led driver for LED street/flood/high-bay/grow light and son.Our products have been passed CE,Rohs,FCC,TUV,SAA certification.

    VIEW MORE>>

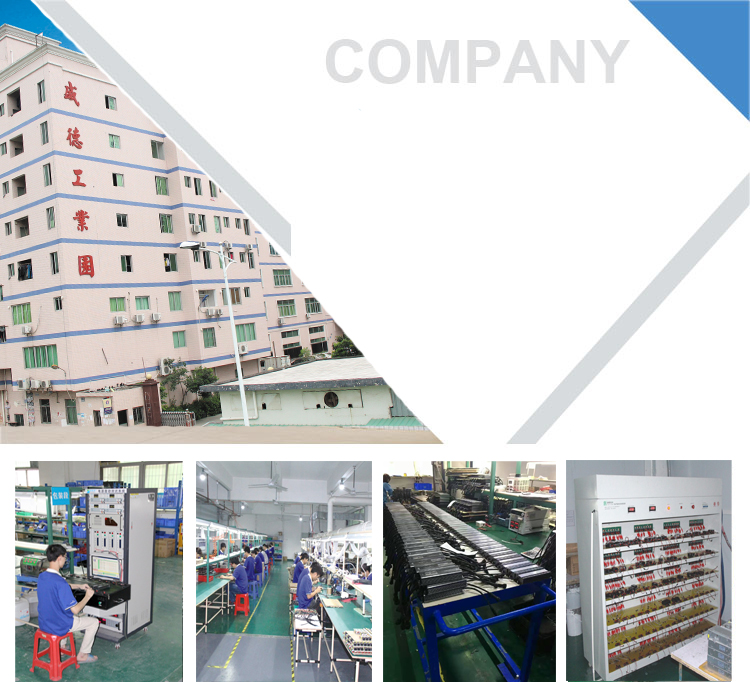

    Factory and production process
